Easy Testing with Android Studio

- mbialas - Element 84

If you’re developing in Android Studio and using the Gradle build system, this guide will help you get your Test environment up and running in just 4 steps. Before we get started, let’s take a look at what we will be adding to our project:

JUnit

JUnit is the standard unit testing framework for Java. We’ll add this to our project via the build.gradle file, which you will see in a minute. JUnit is a very powerful tool, but one weakness is that it cannot be used to test any code that actually uses Android classes. This is because the Android library you compile against is a slimmed down version of the one that runs on your device. While this keeps the Development SDK lightweight, it poses an obvious problem for users that want to run tests without having to deploy to a device.

Robolectric

Robolectric is a library that injects the missing pieces of Android code, allowing you to run tests on your development machine. We will add this to our project via the build.gradle file as well.

Step 1 – Setup build.gradle

Here is a fresh build.gradle file from a new project

buildscript {
    repositories {
        mavenCentral()
    }
    dependencies {
        classpath 'com.android.tools.build:gradle:0.7.0'
    }
}
apply plugin: 'android'

repositories {
    mavenCentral()
}

android {
    compileSdkVersion 19
    buildToolsVersion "19.0.0"

    defaultConfig {
        minSdkVersion 14
        targetSdkVersion 19
    }
}

dependencies {
}

Now let’s make a few additions. We’ll first add a new build type named unitTest, and then include our JUnit and Robolectric dependencies

buildscript {
    repositories {
        mavenCentral()
    }
    dependencies {
        classpath 'com.android.tools.build:gradle:0.7.0'
    }
}

apply plugin: 'android'

sourceSets {
    unitTest {
        java.srcDir file('src/test/java')
        resources.srcDir file('src/test/res')
    }
}

configurations {
    unitTestCompile.extendsFrom runtime
    unitTestRuntime.extendsFrom unitTestCompile
}

dependencies {
    repositories {
        mavenCentral()
    }
    unitTestCompile files("$project.buildDir/classes/release")
    unitTestCompile 'junit:junit:4.10'
    unitTestCompile 'org.robolectric:robolectric:2.1.+'
    unitTestCompile 'com.google.android:android:4.0.1.2'
}

task unitTest(type:Test, dependsOn: assemble) {
    testClassesDir = project.sourceSets.unitTest.output.classesDir
    classpath = project.sourceSets.unitTest.runtimeClasspath
}
check.dependsOn unitTest

android {
    compileSdkVersion 19
    buildToolsVersion "19.0.0"
}

Step 2 – Add a Test

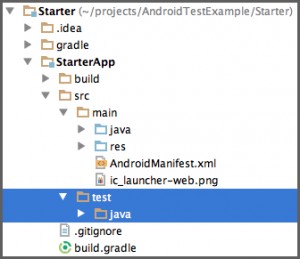

Do this by creating a test/java directory in the src folder

android_test_folder

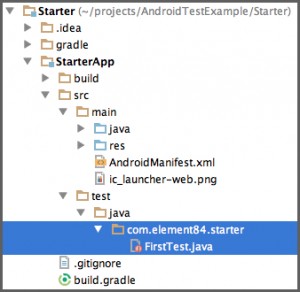

Now let’s add our first test

android_first_test

Code for FirstTest.java

package com.element84.starter;

import static org.junit.Assert.assertEquals;
import org.junit.runner.RunWith;
import org.junit.Test;

import org.robolectric.RobolectricTestRunner;

import android.app.Activity;
import android.widget.TextView;

@RunWith(RobolectricTestRunner.class)
public class FirstTest {
    @Test
    public void testInstantiation() {

        Activity activity = new Activity();

        TextView tv = new TextView(activity);
        tv.setText("e84");

        assertEquals("e84", tv.getText());
    }
}

Step 3 – Run the Test

Open a terminal to where your project’s gradlew sits

    $ cd projects/AndroidTestExample/Starter/

Then run

    $ ./gradlew unitTest

If you receive a permissions error, resolve it with

    $ chmod +x gradlew

Step 4 – View the Results

The test results are viewable as an html file buried in your project’s directory

report_location

Get the code

You can a copy of this project from github
